Week 09 :: Recursion and Form

<< back to Procedural Morphology homepage

Class notes

Concept of Recursion



void setup() {
  size(200, 200);
  noStroke();
  smooth();
  noLoop();
}
void draw() {
  drawCircle(126, 170, 6);
}
void drawCircle(int x, int radius, int level) {
  float tt = 126 * level/4.0;
  fill(tt);
  ellipse(x, 100, radius*2, radius*2);
  if (level > 1) {
    level = level - 1;
    drawCircle(x - radius/2, radius/2, level);
    drawCircle(x + radius/2, radius/2, level);
  }
}

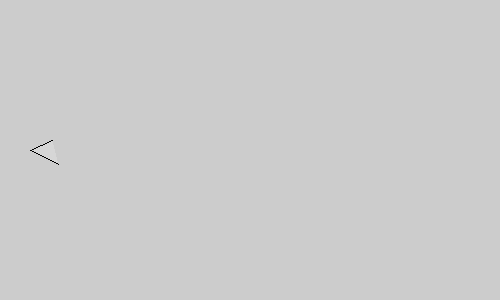

myObj[] objs = new myObj[1000];
int objCount = 1;
int endCount;

void setup() {
   size (500,300);
   for (int i=0; i<objCount; i++) {
      objs[i] = new myObj(30, 150, 1);
   }
   frameRate(1);
}

void draw() {
   endCount = objCount;
   for (int i=0; i<endCount; i++) {
      objs[i].update();
   }
}

class myObj {
   // fields...
   float x, x1, x2;
   float y, y1, y2;
   float s;
   boolean dead = false;

   // constructor...
   myObj(float _x, float _y, float _s) {
   x = _x;
   y = _y;
   s = _s;
   x1 = random(20,30);
   y1 = random(10,15);
   x2 = random(20,30);
   y2 = random(-10,-15);
}

   // methods...
   void update() {
      if (!dead) {
         drawMe();
         begetMe();
         dead = true;
      }
   }

   void drawMe() {
      fill(255,50);
      pushMatrix();
      translate(x,y);
      scale(s);

      beginShape();
      vertex(x1, y1);
      vertex(0, 0);
      vertex(x2, y2);
      endShape();

      popMatrix();
   }


   // here the object creates more copies of the same object.

   void begetMe() {
      if (objCount < 444) {
         objCount++;
         objs[objCount-1] = new myObj(x+s*x1, y+s*y1, s*random(0.7,1.3));
         objCount++;
         objs[objCount-1] = new myObj(x+s*x2, y+s*y2, s*random(0.7,1.3));
      }
   }

}



Fractals

Fractals in processing

Daniel Shiffman's examples on using recursion to create fractal shapes in processing.



Mandelbrot

http://www.ddewey.net/mandelbrot/

Mandelbrot set in processing



Thorsten Fleisch

fleischfilm.com
Particularly his film gestalt



Julia Sets

Theory of Quaterion Fractals from Chaos Pro documentation
Quaternion Julia Fractals

Julia Sets implemented in processing



Buddhabrot Set

j.tarbell's implementation





Iterated function system



Eric Green's Computer Science Thesis has some very understandable algorithms for IFS

Iterated Function Systems (a.k.a. Multiple Reduction Copy Machine Algorithms -- MRCMs)

Chaos and Randomness to Generate IFS



Paule Bourke explains how the IFS system can create the types of images below



Scott Draves

Flame
electric sheep screen saver



Dave Bollinger's IFS renders

Black and White

Color



Diffusion limited aggregation





wiki entry on Diffusion-limited_aggregation

Diffusion-Limited Aggregation and its Simulation

Diffusion limited aggregation in processing source sample





Andy Lomas

AndyLomas.com
Once a Mathematician, Always an Artist



Lindenmayer system (L-Systems)

wiki entry on L-systems

Algorithmic Botany, University of Calgary





Geraldine Sarmiento's L-Systems in Processing



L-Systems from Marc Fornes



Michael Hansmeyer

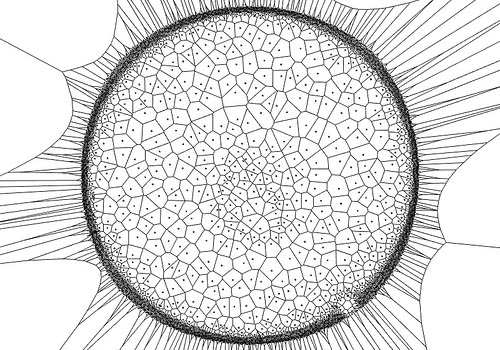

Voronoi Systems

Voronoi Description, java source code and applet
Mesh library for voronoi in processing
Brute force version in processing
voronoi.com


Flight 404's Voronoi Experiments





Voronoi Morphologies by Andrew Kudless



Voronoi Shelf by Marc Newson



Voromuro project by officeDa

Voromuro project write up on form_ula

flickr set



Assignment for next week.

Work on your final sketch from Part 3 of the class.
